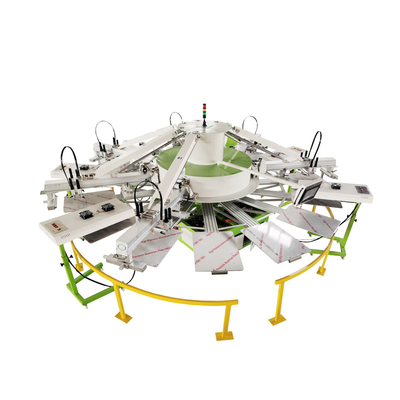

Automatic Printing T-shirt T-shirt Screen Printer For Thickness Image Printing With High Productivity China Factory Direct Sale

1/ To put our machine in your factory, how much space does it need?

Our 10 color screen printing machine is equipped with 36 printing pallets.Its length is 13.5m. Its width is 3.55m. Its height is 1.68m. For this machine size, the max pallet size is 60*80cm. If your needing pallet size is bigger, the machine size will be bigger too. If you want the 10 color screen printing machine with some other quantity, please just tell us, we will calculate it and send you our machine design drawings.

2/ How much electricity does it consume iper hour using flash dryers?If not?

The power of one flash dryer machine is 12KW. There are 10 flash dryer machines with a 10 color

automatic screen printing machine. Its total dryer power is 120KW. But in actual use, when all the

dryers are turned on to the maximum power, the power consumption of the machine is about 125kw per hour.This kind of operation is almost non-existent.Generally, 60% of the maximum power will be consumed in actual use. If you are using a type of ink that does not need to be dried, this machine will consume very little power. Five kilowatts of electricity per hour will be enough.

3/ How many pieces can it print per hour?

Generally,the printing speed of this machine is 600-1000(pcs/h).But its printing speed in industrial producing will be related to three main facts:

1.The printing size of your product will be the first factor and it would take more time to print one piece if your printing size is a big one.

2.The textile ink is the second factor.The variety of ink includes: water slurry,mucilage(Water-based ink,Oil-based ink), Plastisol, silica gel ink, solvent-based inks.

3.The operating proficiency of printing machine and printing process will can also effect the speed of printing.

4/ What the difference between our machine from others?

1. The configuration of our machine is positioned above mid-to-high end

2. At present, some machines on the market use honeycomb platens, which have short lifespan, are afraid of high temperatures, are easy to open glue, and are not suitable for long-term drying. The platen of our machine is made of imported 8mm aluminum alloy super flat plate, which is resistant to high temperature and does not deform. The surface of the platen has been tempered and polished. The level accuracy per meter is higher than +-0.05mm and the service life is long.

3. Our machine adopts a quick plate changing device, and the plate changing time is only 3-6 seconds, which greatly improves the production efficiency.

4. The main structure of the machine adopts high-end aluminum alloy 6061, with a high-end appearance, and one-piece molding is better than a welded iron body, which greatly maintains the stability of the machine, and its ultra-low ductility can avoid machine deformation during long-term use.

5. Most of the machines use imported parts, such as motors from Japan, cylinders from Taiwan, bearings from Germany, etc.

1. who are we?
We are based in Shandong, China, start from 2020,sell to Mid East(40.00%),Southeast Asia(20.00%),Eastern Europe(10.00%),Africa(10.00%),North America(5.00%),South America(5.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic screen printing machine,Automatic Digital printing machine,Automatic socks and gloves screen printing machine,Dryer Machine,Automatic 3D laser printer

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: US doller, RMB;
Accepted Payment Type: T/T, L/C;
Language Spoken:English,Korean
